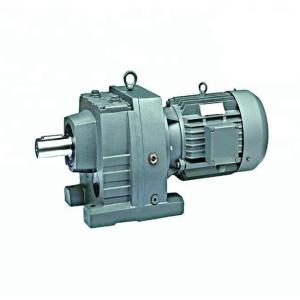

S Solid Shaft Helical Electric Motor Speed Reducer

Brand Name : Dongtai

Model Number : DTS

Certification : ISO 9001:2016

Place of Origin : Henan, China

MOQ : 1 Set

Price : Negotiated

Payment Terms : T/T, Western Union, L/C

Supply Ability : 1000 sets per month

Delivery Time : 5-20 days

Packaging Details : Wooden case, Pallet

Application Industry : Machinery Repair Shops, Farms, Energy & Mining

Customized support : OEM, ODM

Gearing Arrangement : Helical

Output Torque : 800~100000N.m

Input Speed : 1400rpm

Output Speed : 14-280rpm

Ratio : 7.5~100

Mount Position : Foot Mounted

Bearing : NSK,LYC

Input power rating : 0.55-7.5

Contact Now

S series Helical Motor Gearbox Coaxial Helical Gearbox with motor

Product Application

S series solid shaft helical worm 220v ac gear motor gearbox is one kind of Helical worm gearbox ,designed as Modularization and high-stainless cast iron case. It is combination of helical gear and worm gear ,which with higher efficiency and strength than simple aluminum worm gearbox. Due to their outstanding efficiency, these drives can be used in every industrial sector and tailored to individual torque and speed requirements. The gear ratios afforded by the helical-worm gear stage and the low noise levels during operation make these gearmotors ideal low- cost solutions for simple applications
1) Output speed: 0.6~1,028r/min
2) Output torque: up to 4530N.m
3) Motor power: 0.12~22kW
4) Mounted form: foot-mounted and flange-mounted mounting

Gear Material 20CrMnTi
Case Materia HT250
Shaft Material 20CrMn
Gear Processing GEear grinding
Color Customized
Noise Test Bellow 75dB
Machining precision of gears accurate grinding, 6 Grade
Heat treatment tempering, Cementating, quenching, etc
Brand of bearings LYC NSK
Brand of oil seal NAK or other brand
Noise(MAX) 70-75dB
Temp rise (MAX) 40℃
Temp rise(Oil)(MAX) 50℃

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization, no pollution

5) Apply a linker to connect with the air conveyor, which can directly inline with filling machine.

Technical data

Gearing Arrangement
Helical-worm
Output Torque
10–4484 Nm
Input Speed
1400 rpm
Output Speed
0.21-12 r/min
Color
Customizable
Certificate
ISO9001
Structure
SF
Input power rating
0.55-7.5
Ratio
9.96-241.09
Maximum torque
1270
Input Configurations
Equipped with Electric Motors
Solid Shaft Input
IEC-normalized Motor Flange
Applicable Motors
Single Phase AC Motor, Three Phase AC Motor
Brake Motors
Inverter Motors
Multi-speed Motors
Explosion-proof Motor
Roller Motor
Output Configurations
Solid Shaft Output
Hollow Shaft Output
nstallation
Foot-mounted
B5 Flange-mounted
B14 Flange-mounted
Shaft-mounted
Lubrication
Oil-bath and Splash Lubrication

S Solid Shaft Helical Electric Motor Speed Reducer

S Solid Shaft Helical Electric Motor Speed Reducer
S Solid Shaft Helical Electric Motor Speed Reducer
